MI - 5105
Combination Open End Spanner Short Series
Recessed Panel, Chrome Plated
Carbon Steel / Chrome Vanadium,

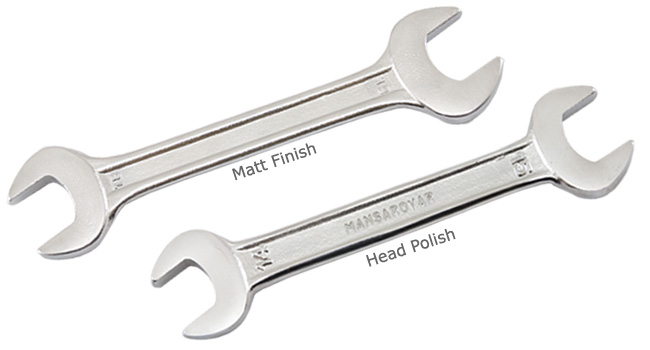

Matt Finish / Head Polish
Duly Hardened & Tempered
Head set at 15° offset
Size
(mm)
L
(mm)
gms
(Approx.)
6x7 85 15
8x9 102 20
8x10 102 20
10x11 112 30
10x13 120 35
12x13 129 45
14x15 148 65
13x17 158 80
14x17 160 90
16x17 160 90
17x19 182 115
18x19 182 115
19x22 200 145
20x22 200 145
21x23 200 160
22x24 212 180
24x26 225 200
24x27 225 200
25x28 236 230
27x32 250 280
30x32 250 280

SETS CONTENT gms.
(Approx.)
M 60 6x7, 8x9, 10x11, 12x13,14x15,16x17 255
M 61 6x7, 8x9, 10x11, 14x15, 16x17, 18x19 325
M 62 8x9, 10x11, 12x13, 14x15,16x17, 18x19, 20x22 355
M 80 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 515
M 100 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27 875
M 101 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 24x27, 30x32 1005
M 120 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 1395
M 121 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x26, 25x28, 27x32 1395

MI - 5106
Double Open End Spanner Long Series
Recessed Panel, Chrome Plated
Carbon Steel / Chrome Vanadium,
Matt Finish / Head Polish
Duly Hardened & Tempered
Head set at 15° offset
Size
(mm)
L
(mm)
gms
(Approx.)
6x7 122 23
8x9 140 32
10x11 155 50
12x13 171 62
14x15 190 80
16x17 204 110
18x19 220 150
20x22 235 200
21x23 248 230
24x26 267 320
24x27 267 275
25x28 280 345
30x32 301 450

SETS CONTENT gms.
(Approx.)
M 60 6x7, 8x9, 10x11, 12x13,14x15,16x17 357
M 61 6x7, 8x9, 10x11, 14x15, 16x17, 18x19 445
M 62 8x9, 10x11, 12x13, 14x15,16x17, 18x19 484
M 80 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 707
M 100 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27 1212
M 101 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 24x27, 30x32 1432
M 120 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 2007
M 121 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x26, 25x28, 27x32 2052
