MI - 5101

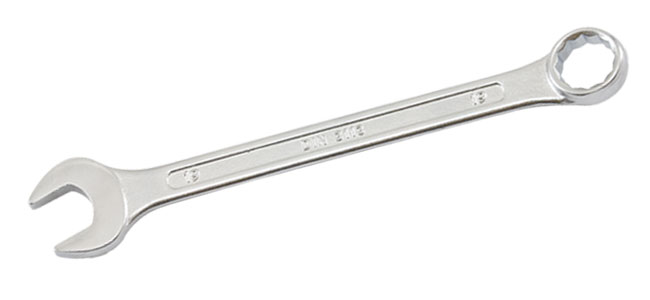

Combination Spanner Long Pattern (DIN 3113)
Recessed Panel
Carbon Steel / Chrome Vanadium
Matt Finish / Head Polish (Chrome Plated)
Dully Hardened & Tempered
Ring at 15° offset
Size L
(mm)		 gms
(Approx.)
MM SAE
6 1/4 100 15
7   110 18
8 5/16 120 25
9   130 30
10 3/8 140 35
11 7/16 150 50
12   160 55
13 1/2 170 60
14 9/16 180 83
15   190 90
16 5/8 200 103
17 11/16 210 115
18   220 126
19 3/4 230 150
20   240 156
21 13/16 250 172
22 7/8 260 210
23   270 210
24 15/16 280 238
25 1 290 264
26   300 296
27 1.1/16 310 315
28 1.1/8 320 406
29   330 440
30   340 440
32 1.1/4 360 560

SETS CONTENT gms.
(Approx.)
M 60 8,10,12,13,14,17 365
M 80 8,9,10,11,13,14,17,19 545
M 110 6,7,8,9,10,11,12,13,14,
17,19		 628
M 120 6,7,8,9,10,11,12,13,14,
17,19,22		 838
M 121 8,10,12,13,14,17,19, 22,
24,27,30, 32		 2286
M 140 6,7,8,9,10,11,12,13,14,15,
17,18, 19,22		 1063
M 250 6,7,8,9,10,11,12,13,14,15,
16,17, 18, 19,20,21,22,23,24,25,26, 27,
28, 30,32		 4222

MI - 5102
Combination Spanner Raised Panel
Carbon Steel
Head & Panel Polish (Chrome Plated)
Duly Hardened & Tempered
Ring at 15° offset
Size L
(mm)		 gms
(Approx.)
MM SAE
6 1/4 95 16
7   97 20
8 5/16 108 28
9   114 30
10 3/8 128 40
11 7/16 132 43
12   137 54
13 1/2 145 65
14 9/16 164 80
15   175 90
16 5/8 185 100
17 11/16 205 135
18   205 150
19 3/4 232 160
20   232 170
21 13/16 258 190
22 7/8 289 215
23   289 225
24 15/16 313 260
25 1 324 270
26   324 300
27 1.1/16 361 350
28 1.1/8 369 400
30   381 525
32 1.1/4 391 620

SETS CONTENT gms.
(Approx.)
M 50 8,10,12,14,17 337
M 60 8,10,12,13,14,17 402
M 80 8,9,10,11,13,14,17,19 581
M 90 6,7,8,9,10,12,14,17,19 563
M 110 6,7,8,9,10,11,12,13,14,
17,19		 671
M 120 6,7,8,9,10,11,12,13,14,
17,19,22		 886
M 50 3/8,7/16,1/2,9/16,5/8 328
M 60 3/8,7/16,1/2,9/16,5/8,
11/16		 463
M 90 1/4,5/16,3/8,7/16,1/2,
9/16,5/8,11/16,3/4		 667
M 110 1/4,5/16,3/8,7/16,1/2,
9/16,5/8,11/16,3/4,
13/16,7/8		 1072
